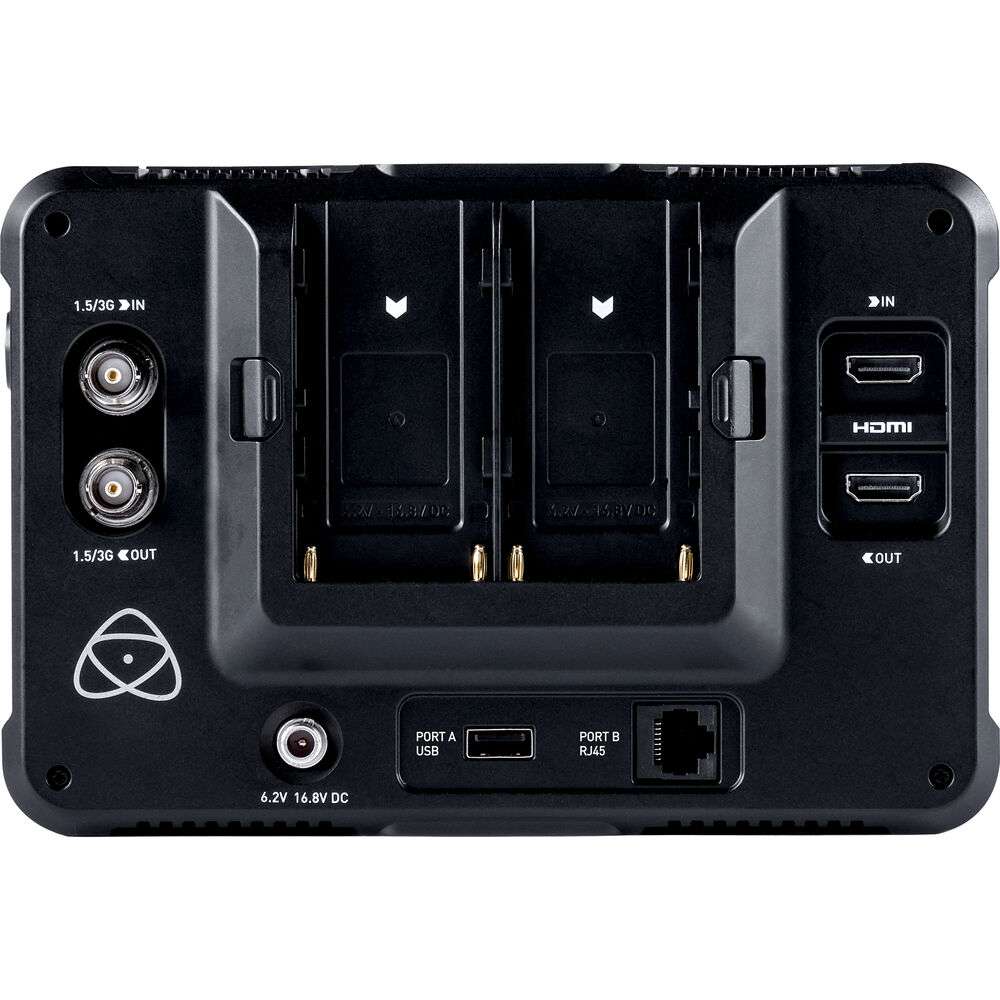

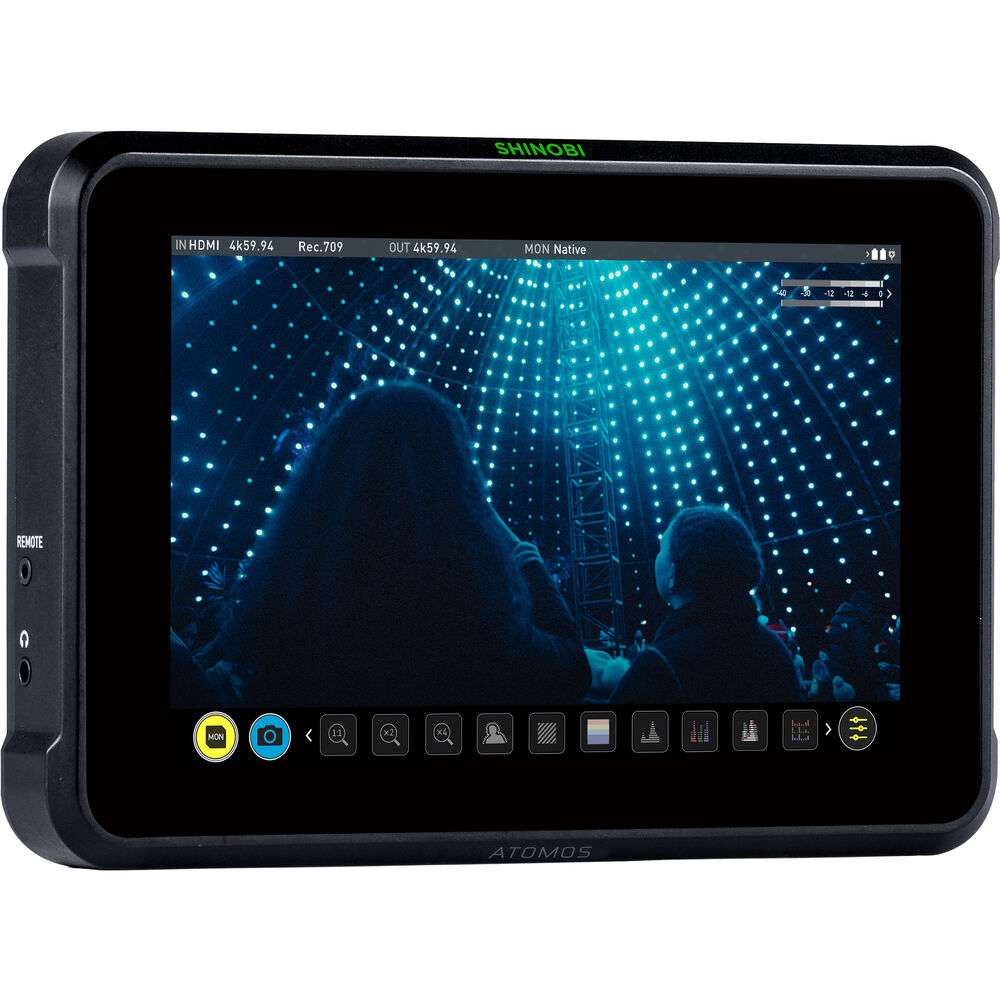

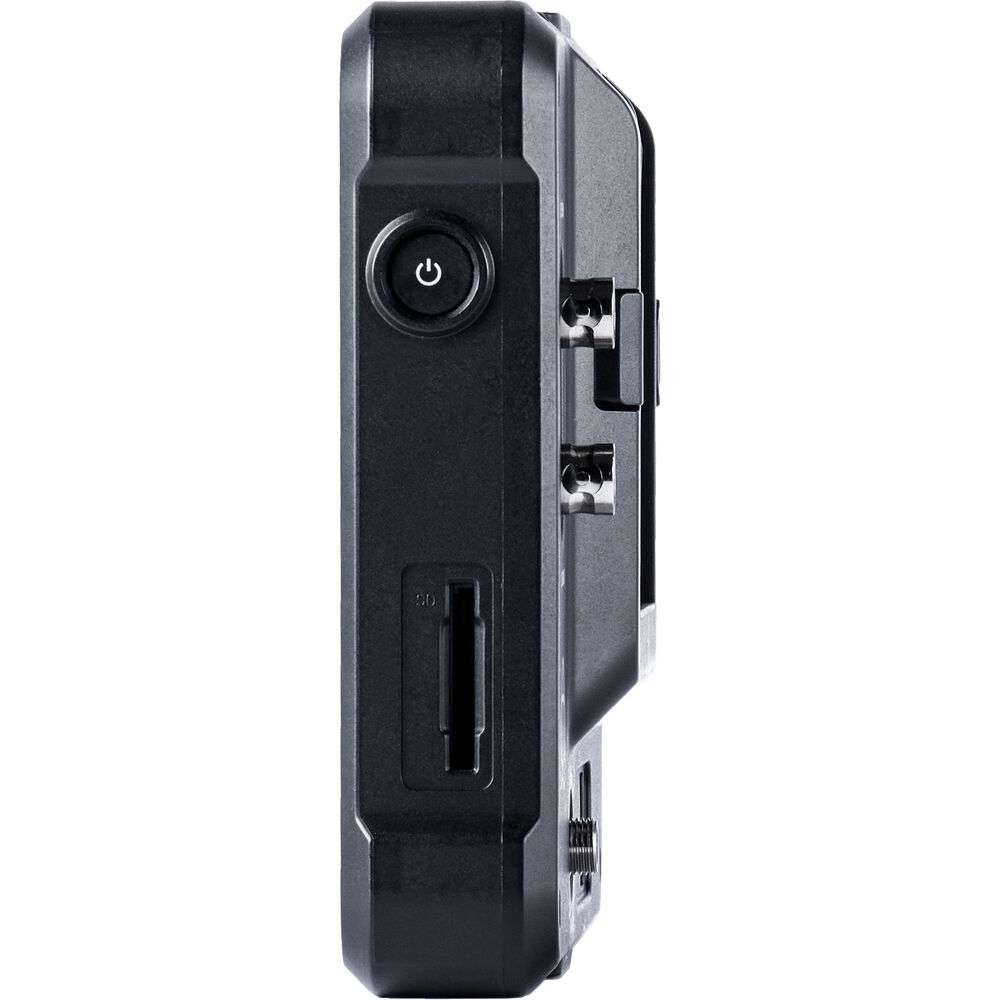

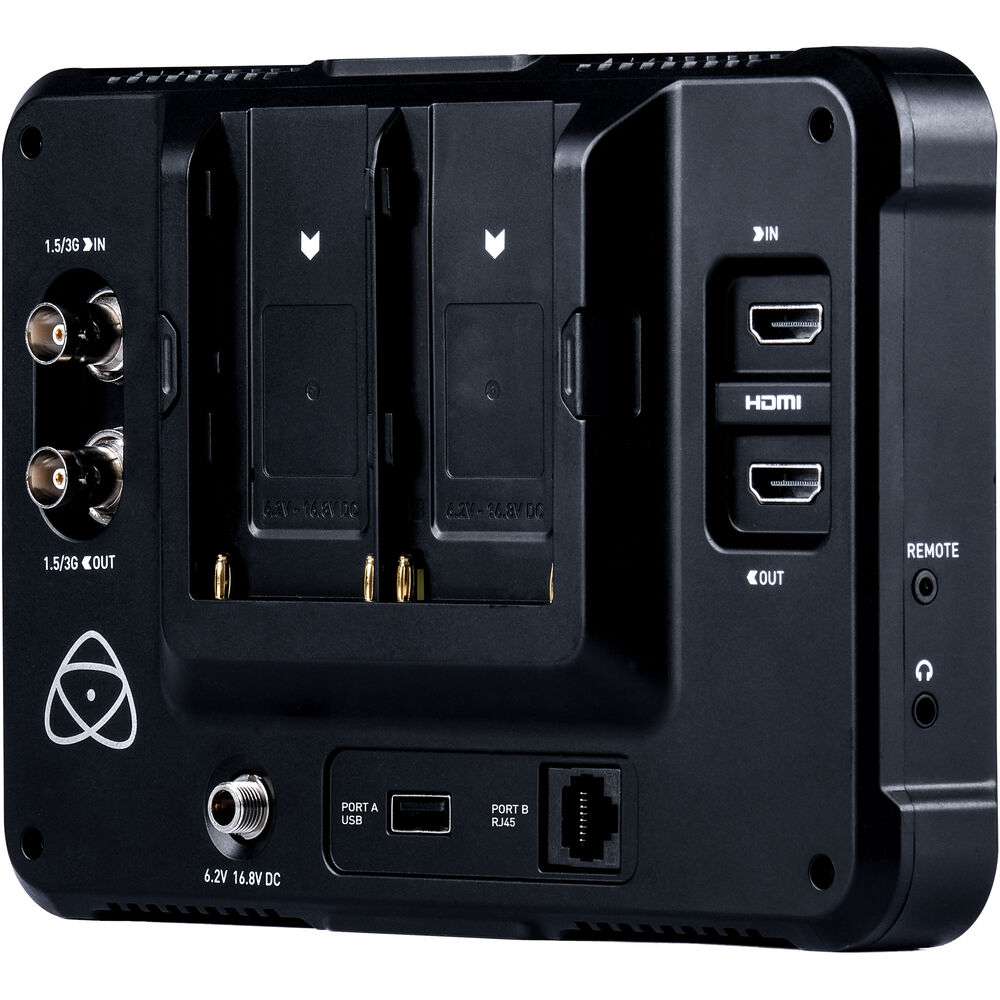

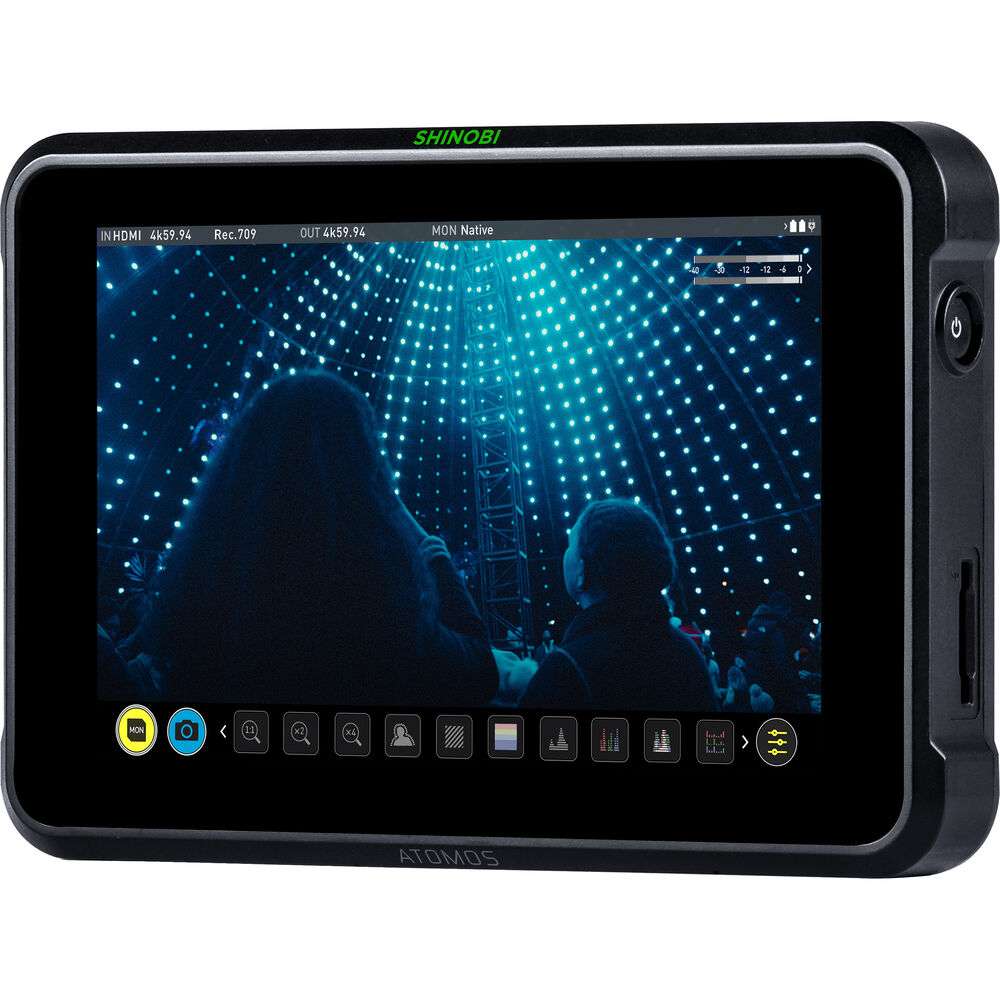

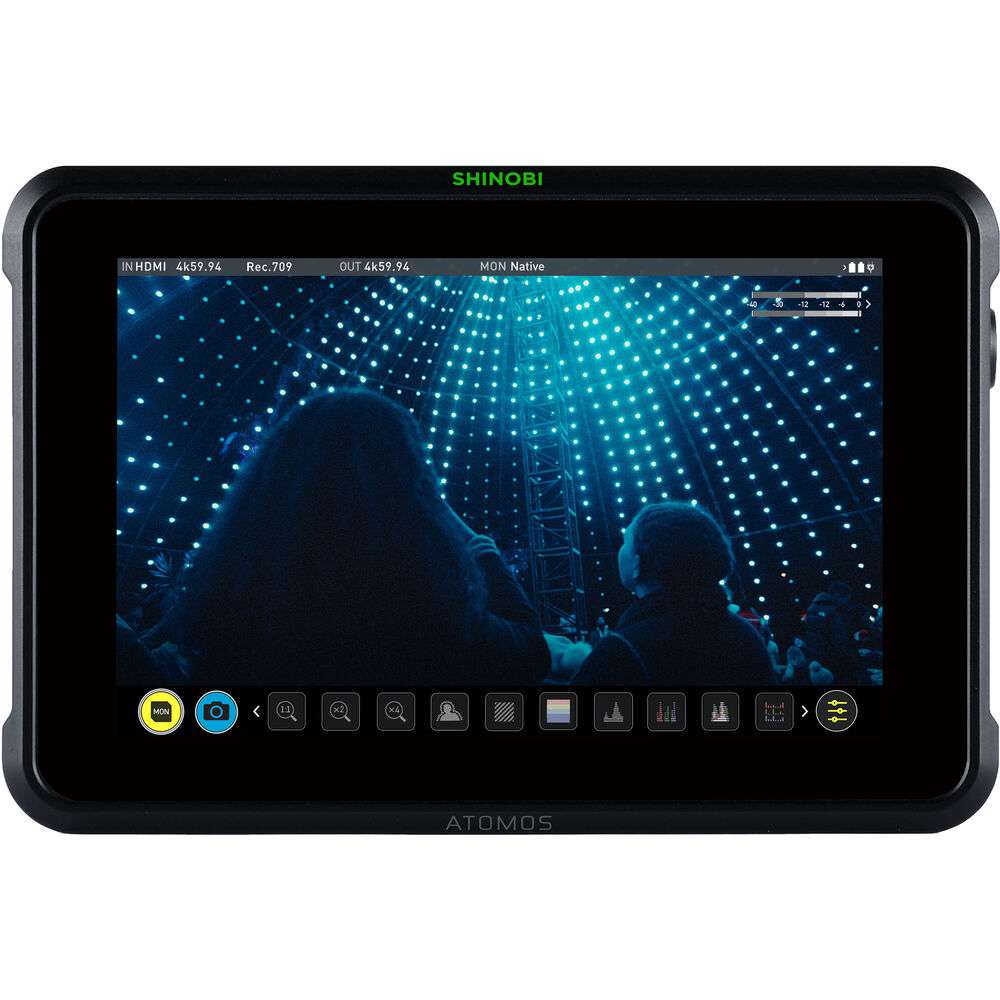

Atomos Shinobi 7" 4K HDMI/SDI Monitor

Pixels Per Inch

325 ppi

Image Control

Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI: 2-Channel
SDI: 8-Channel

Material

Plastic

Video Format

HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI (8/10-Bit 4:2:2)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Mount

2x 1/4"-20 Female

Media Slot

Single Slot: SD/SDHC/SDXC

Battery Type

2x L-Series

Power Input & Output

1x Barrel (16.8 VDC) Input

Other Input & Output

1x 2.5 mm (LANC) Output
1x USB-A 2.0 Input
1x RJ45 Input/Output

Wi-Fi Compatibility

No

Bluetooth Compatibility

No

Input Power

6.2 to 16.8 VDC

Dimensions

7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm

Weight

1.27 lb / 577.00 g
